Evaluating Cardiac Function of Tree Shrew (Tupaiabelangeri) using CMR at 7T with 2D Tissue Tracking
-
摘要:目的 探讨参照大鼠心功能测量方法，应用7T心脏磁共振二维组织追踪技术(CMR-TT)评价树鼩心功能的潜在价值。方法 随机分别选取8只正常成年雄性树鼩及8只正常成年雄性大鼠作为实验对象，两组动物均使用相同成像线圈及磁共振序列分别进行7T磁共振心脏左室短轴位磁共振电影扫描，图像数据由专业心脏图像处理软件进行二维组织追踪分析，分别测量两组动物的射血分数(EF)，左心室收缩峰值径向应力(Err)和周向应力(Ecc)，左心室收缩峰值径向位移(DR)，并计算左心室心肌质量(LVM)以及与体质量(BM)的比值LVM/BM。结果 参照大鼠成像方法对树鼩进行心脏磁共振成像，成功率达到100%，图像可清晰显示树鼩心脏各构成要件。树鼩与大鼠之间EF、Err和Ecc、DR差异有统计学意义(P＜0.01)，树鼩的EF、Err和Ecc均明显低于大鼠，并且树鼩的Err，Ecc出现在左室收缩期第15时相，大鼠的Err，Ecc出现在左室收缩期第10时相，树鼩LVM/BM高于大鼠LVM/BM(P＜0.05)。结论 采用7T心脏磁共振二维组织追踪技术可以对树鼩心功能进行评价，树鼩与大鼠不同物种之间心功能存在显著差异性。
-
关键词:
- 心脏磁共振组织追踪技术 /
- 应力 /
- 电影成像 /
- 树鼩 /
- 7T磁共振
Abstract:Objective To determine the potential value of the two-dimensional (2D) cardiac magnetic resonance imaging (CMR) tissue tracking (CMR-TT) method in assessing the cardiac function of tree shrew at 7T.Methods Healthy adult tree shrews (male, n=8) and spraguedawley rats(male, n=8) were selected for this study. CMR was performed to acquire the short-axis images of left ventricle at 7T using the same appropriative coil and cine sequence for all experimental animals. The CMR images were processed using the professional cardiac analysis software, calculating ejection fraction (EF), radial peak sysolic strain (Err), circumferential peak sysolic strain (Ecc), radial peak sysolic displacement (DR), and LVM/BM 〔the ratio of left ventricular mass (LVM) to body mass (BM)〕.Results Cine imaging for the tree shrews was 100% successful following the CMR protocol for the rats, with clearly visible main segments of cardiac. Significant differences in EF, Err, Ecc and DR were found between the two groups of animals (P < 0.01). The tree shrews has lower EF, Err and Ecc than the rats. Err and Ecc appeared in the fifteenth phase in left ventriclar systole in the tree shrews, compared with the tenth phase in the rats.The tree shrews also had higher LVM/BM than the rats.Conclusion The cardiac function of tree shrew can be assessed using the 2D CMR-TT method despite significant differences across species.-
Keywords:
- CMR-TT /
- Strain /
- Cine /
- Tree shrew /
- 7-tesla MR
-
-
![]()
图 1 树鼩及大鼠心脏cine成像收缩期图像：树鼩心脏短轴乳头肌层面左室舒张末(A)及左室收缩末(B)时相，树鼩心脏长轴左室舒张末(C)及左室收缩末(D)时相；大鼠心脏短轴乳头肌层面左室舒张末(E)及左室收缩末(F)时相，大鼠心脏长轴左室舒张末(G)及左室收缩末(H)时相
Figure 1. Cardiac cine images of tree shrews and rats in the systole. The left ventricular end-diastolic phase (A) and left ventricular end-systolic phase(B) were shown in the papillary muscle short-axis slice of the tree shrews. The left ventricular end-diastolic phase (C) and left ventricular end-systolic phase(D) were shown in long-axis slice of the tree shrews. The left ventricular end-diastolic phase (E) and left ventricular end-systolic phase (F) were shown in the papillary muscle short-axis slice of the rats. The left ventricular end-diastolic phase (G) and left ventricular end-systolic phase (H) were shown in the long-axis slice of the rats
![]()

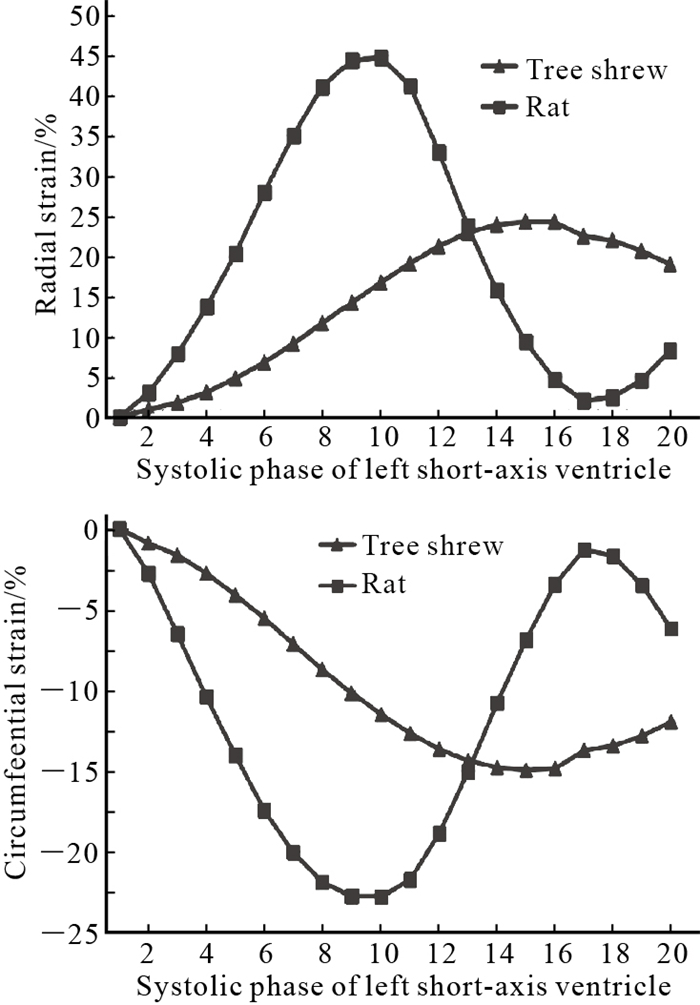

图 2 树鼩与大鼠左室短轴收缩期心肌应力时相变化曲线
Figure 2. The curves correlated to strain value and systolic phases of the left short-axis ventricle for tree shrews and rats
表 附表 树鼩及大鼠心功能指标
Table 附表 The CMR-TT parameters of tree shrews and rats
Parameter Tree shrews
(n=8)Rats
(n=8)P LVM/g 0.41±0.07 0.31±0.04 0.01 LVM/BM 0.29±0.05 0.13±0.02 0.00 EF/% 53.14±7.33 68.12±2.35 0.00 Err/% 24.74±7.29 45.44±3.19 0.00 Ecc/% -15.11±3.24 -23.09±0.88 0.00 DR/mm 0.71±0.10 1.72±0.43 0.00
下载: 导出CSV
-
[1] FAN Y, HUANG ZY, CAO CC, et al. Genome of the Chinese tree shrew. Nat Commun, 2013, 4: 1426[2019-04-21]. https://doi:10.1038/ncomms2416.
[2] HAN YL, LI BW, YIN TT, et al. Molecular mechanism of the tree shrew's insensitivity to spiciness. PLoS Biol, 2018, 16(7): e2004921[2019-04-21]. https://doi:10.1371/journal.pbio.2004921.
[3] LU CX, SUN XM, LI N, et al. CircRNAS in the tree shrew(Tupaia belangeri) brain during postnatal development and aging. Aging(Albang NY), 2018, 10(4):833-852.
[4] GU TL, YU DD, LI Y, et al. Establishment and characterization of an immortalized renal line of the chinese tree shrew(Tupaia belangeri chinesis). Appl Microbiol Biotechnol, 2019, 103(5):2171-2180. DOI: 10.1007/s00253-019-09615-3
[5] ZHANG X, XU J, WU Z, et al. Development of a tree shrew-specific interferon-gamma assay. J Immunoassay Immunochem, 2017, 39(2):136-149. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=10.1080/15321819.2017.1344128
[6] XIAO J, LIU R, CHEN CS. Tree shrew (Tupaia belangeri) as a novel laboratory disease animal model. Zool Res, 2017, 38(3):127-137. DOI: 10.24272/j.issn.2095-8137.2017.033
[7] 毕春, 孟强, 刘光鉴, 等.光化学诱导树鼩血栓性脑缺血脑水含量、血浆去甲肾上腺素及心功能的变化.基础医学与临床, 2010, 30(11):1216-1217. http://d.old.wanfangdata.com.cn/Periodical/jcyxylc201011020 [8] 仝品芬, 陆彩霞, 江勤芳, 等.树鼩血压和心率的无创测定.中国比较医学杂志, 2013, 23(4):52-56. DOI: 10.3969/j.issn.1671-7856.2013.04.012 [9] CHEN W, ZHANG B, XIA R, et al. T2 mapping at 7T MRI can quantitatively assess intramyocardial hemorrhage in rats with acute reperfused myocardial infarction in vivo. J Magn Reson Imaging, 2016, 44(1):194-203. DOI: 10.1002/jmri.25145
[10] INOUE YY, ALISSA A, KHURRAM IM, et al. Quantitative tissue‐tracking cardiac magnetic resonance (CMR) of left atrial deformation and the risk of stroke in patients with atrial fibrillation. J Am Heart Assoc, 2015, 4(4): e001844[2019-04-21]. https://doi:10.1161/JAHA.115.001844
[11] KARAMITSOS TD, FRANCIS JM, MYERSON S, et al. The role of cardiovascular magnetic resonance imaging in heart failure. J Am Coll Cardiol, 2009, 54(15):1407-1424. DOI: 10.1016/j.jacc.2009.04.094
[12] SONNAY S, POIROT J, JUST N, et al. Astrocytic and neuronal oxidative metabolism are coupled to the rate of glutamate-glutamine cycle in the tree shrew visual cortex. Glia, 2018, 66(3):477-491. DOI: 10.1002/glia.23259
[13] FORSUM E, HILLMAN PE, NESHEIMM MC. Effect of energy restriction on total heat production, basal metabolic rate, and specific dynamic action of food in rats. J Nutr, 1981, 111(10):1691-1697. DOI: 10.1093/jn/111.10.1691
[14] 李晓婷, 朱万龙, 刘鑫, 等.中缅树鼩能量代谢的季节变化.兽类学报, 2011, 31(3):291-298. http://d.old.wanfangdata.com.cn/Periodical/slxb-201103011 [15] PEDRIZZETTI G, CLAUS P, KILNER PJ, et al. Principles of cardiovascular magnetic resonance feature tracking and echocardiographic speckle tracking for informed clinical use. J Cardiovasc Magn Reson, 2016, 18(1):51. DOI: 10.1186/s12968-016-0269-7
[16] MICHAEL D, HANS L, CHRISTOPH K, et al. Strain and strain rate imaging by echocardiography - basic concepts and clinical applicability. Curr Cardiol Rev, 2009, 5(2):133-148. DOI: 10.2174/157340309788166642
[17] ARMSTRONG AC, SAMUEL G, OLA G, et al. LV mass assessed by echocardiography and CMR, cardiovascular outcomes, and medical practice. Jacc Cardiovasc Imaging, 2012, 5(8):837-848. DOI: 10.1016/j.jcmg.2012.06.003
[18] PENG Y, POPOVIC ZB, SOPKO N, et al. Speckle tracking echocardiography in the assessment of mouse models of cardiac dysfunction. Am J Physiol Heart Circ Physiol, 2009, 297(2):H811-820. DOI: 10.1152/ajpheart.00385.2009
[19] DANIEL K, GILSON WD, KRAMER CM, et al. Myocardial tissue tracking with two-dimensional cine displacement-encoded MR imaging:development and initial evaluation. Radiology, 2004, 230(3):862-871. DOI: 10.1148-radiol.2303021213/
-
