Influence of Meteorological Factors on HFMD and Construction of Prediction Model in Sichuan Province
-
摘要:
目的 分析2013−2019年四川省手足口病（hand foot and mouth disease, HFMD）的流行特征，研究气象学因素与HFMD发病率的相关性，并构建预测模型。 方法 通过中国疾病预防控制中心和中国气象数据网收集2013−2019年四川省HMFD监测数据和气象数据。采用Spearman相关分析探究HFMD月发病率与气象学因素的关系，同时采用多元回归模型和支持向量回归（support vector regression, SVR）模型分别构建HFMD月发病率预测模型。 结果 2013−2019年四川省累计报道HFMD 615 840例，死亡病例81例，年均发病率107.31/105，死亡率0.16/106。Spearman相关分析显示月平均相对湿度（r=0.342）、月平均气温（r=0.284）、月平均水汽压（r=0.304）、月平均降水天数（r=0.259）与HFMD月发病率呈正向弱相关。多元回归模型预测结果（R2=0.375）准确性不如SVR模型（R2=0.836），SVR模型对2013−2018年HFMD月发病率有较好的拟合，能较好地预测2019年发病高峰。 结论 月平均相对湿度对HFMD月发病率影响最大；SVR模型的拟合值与实际值吻合度较高，对四川省HFMD发病情况预测具有一定价值。 Abstract:Objective To analyze the epidemiological characteristics of hand, foot and mouth disease (HFMD) in Sichuan Province from 2013 to 2019. To study the correlation between meteorological factors and the incidence of HFMD and construct a prediction model. Methods The HMFD surveillance data and meteorological data from 2013 to 2019 in Sichuan Province were collected through the Chinese Center for Disease Control and Prevention and the China Meteorological data Network. Spearman correlation was used to analyze the relationship between HFMD incidence and meteorological factors. Multiple regression model and support vector regression (SVR) model were used to construct HFMD incidence prediction models respectively. Results A total of 615 840 cases of HFMD and 81 deaths were reported from 2013 to 2019. The average annual incidence rate was 107.31/105, and the mortality rate was 0.16/106. Spearman correlation analysis showed that the monthly incidence rate of HFMD was correlated with monthly average relative humidity (r=0.342), monthly average temperature (r=0.284), monthly average water vapor pressure (r=0.304) and monthly average days of precipitation (r=0.259). The prediction effect of the SVR model (R2=0.836) was better than the multiple regression model (R2=0.375). The SVR model provided a good fit to the monthly incidence of HFMD from 2013 to 2018, and can predict the peak incidence of HFMD in 2019. Conclusion Relative humidity has the greatest influence on the incidence of HFMD. The fitting value of SVR model is in good agreement with the actual value, which is valuable in predicting the incidence of HFMD in Sichuan Province. -
Key words:
- HFMD /
- Meteorological analysis /
- Multiple regression /
- SVR
-

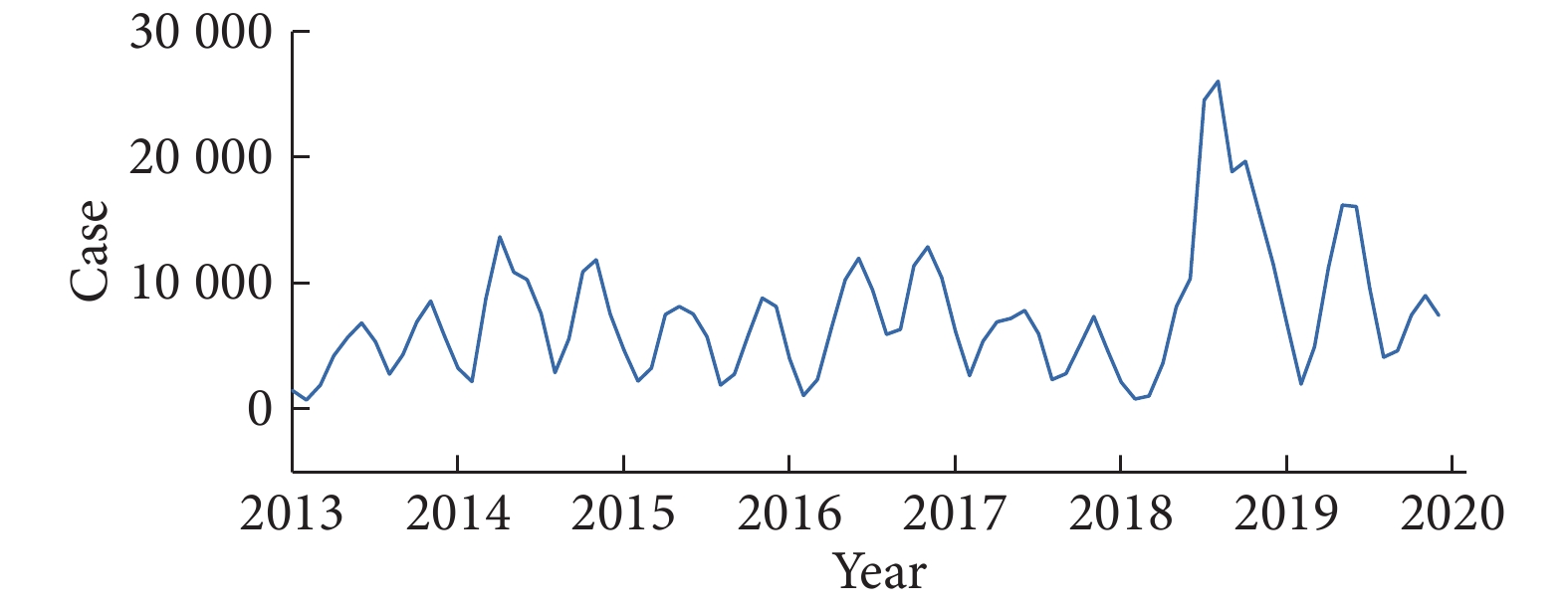

图 1 2013−2019年四川省HFMD发病时间分布
Figure 1. Time distribution of HFMD cases in Sichuan Province, from 2013 to 2019

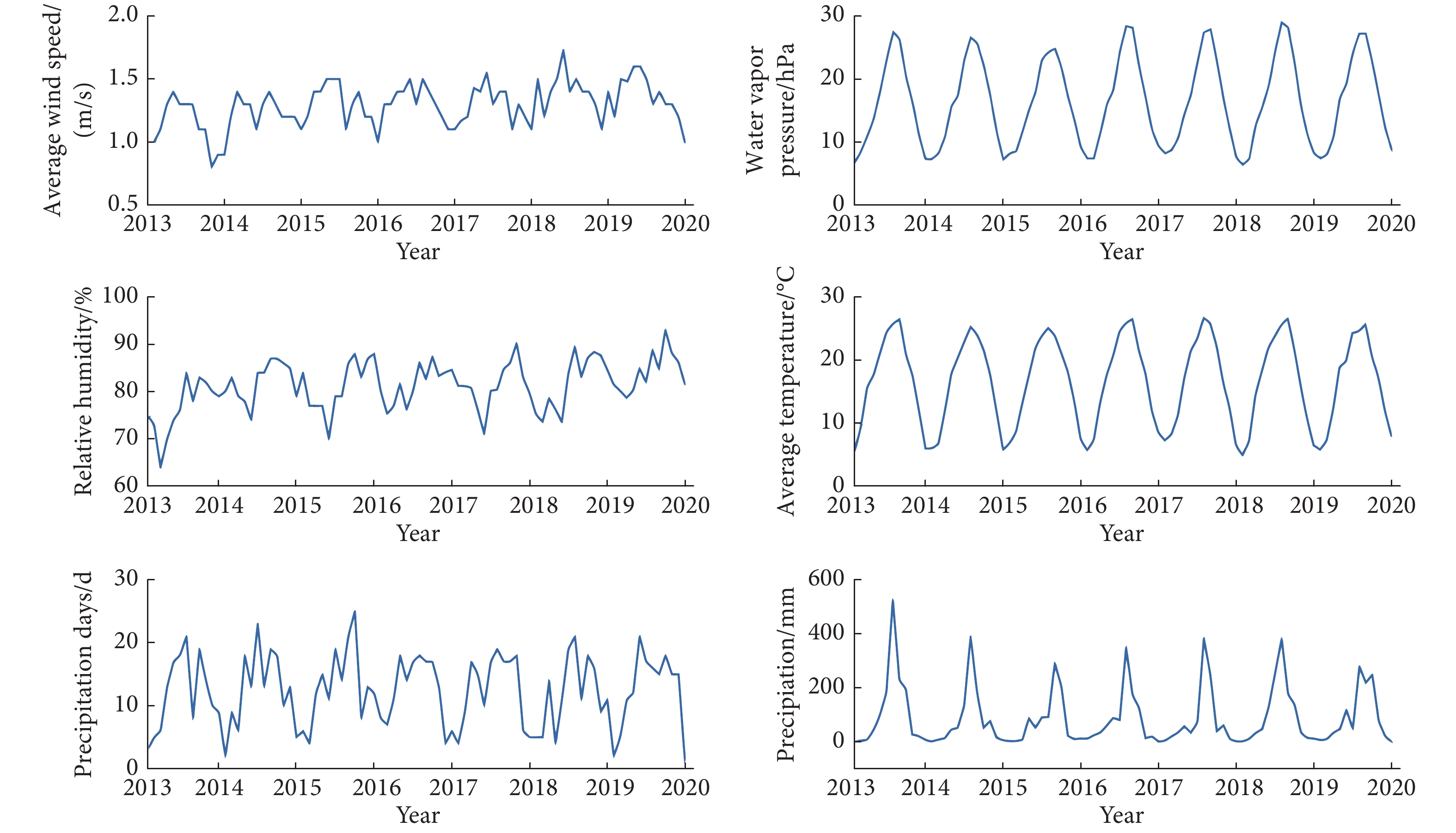

图 2 2013−2019年四川省气象因素变化情况
Figure 2. The variations of meteorological variable in Sichuan Province, from 2013 to 2019
图 3 四川省2013−2019年HFMD归一化月发病率的多元回归模型
Figure 3. The multiple regression model of normalized monthly incidence rate of HFMD in Sichuan Province, from 2013 to 2019
图 4 四川省2013−2019年HFMD归一化月发病率的SVR模型
Figure 4. The SVR model of normalized monthly incidence rate of HFMD in Sichuan Province, from 2013 to 2019
表 1 2013−2019年四川省手足口发病情况
Table 1. Incidences of reported HFMD cases in Sichuan provience, from 2013 to 2019
Year Case Incidence rate
（/105）Death
caseMortality rate
（/106）2013 54 597 67.60 34 0.42 2014 95 557 117.87 19 0.23 2015 66 675 81.91 7 0.09 2016 92 594 112.86 18 0.22 2017 64 429 77.98 1 0.01 2018 142 461 171.60 1 0.01 2019 99 527 121.32 1 0.01 Total 615 840 107.31 81 0.16
下载: 导出CSV
-
[1] SAGUIL A, KANE S F, LAUTERS R, et al. Hand-foot-and-mouth disease: rapid evidence review. Am Fam Physician,2019,100(7): 408–414. [2] XING W J, LIAO B H, VIBOUND C, et al. Hand, foot, and mouth disease in China, 2008−12: an epidemiological study. Lancet Infect Dis,2014,14(4): 308–318. doi: 10.1016/S1473-3099(13)70342-6 [3] BIAN L L, WANG Y P, YAO X, et al. Coxsackievirus A6: a new emerging pathogen causing hand, foot and mouth disease outbreaks worldwide. Expert Rev Anti Infect Ther,2015,13(9): 1061–1071. doi: 10.1586/14787210.2015.1058156 [4] NASSEF C, ZIEMER C, MORRELL D S. Hand-foot-and-mouth disease: a new look at a classic viral rash. Curr Opin Pediatr,2015,27(4): 486–491. doi: 10.1097/MOP.0000000000000246 [5] 黄晓龙, 王丽伟, 吴薇, 等. 基于观测事实的四川天气现象发生空间分布特征. 高原山地气象研究,2018,38(2): 15–22. doi: 10.3969/j.issn.1674-2184.2018.02.003 [6] 程秀伟, 吕强, 袁伟, 等. 2009−2015年四川省手足口病流行特征分析. 预防医学情报杂志,2018,34(3): 298–301. [7] 何晶晶, 王怡, 邓丹明鑫, 等. 重庆市手足口病多种预警模型的建立与评估. 重庆医科大学学报,2018,43(7): 969–947. [8] XU Z, HU W, JIAO K, et al. The effect of temperature on childhood hand, foot and mouth disease in Guangdong Province, China, 2010−2013: a multicity study. BMC Infect Dis, 2019, 19(1): 969[2019-05-07]. https://bmcinfectdis.biomedcentral.com/articles/10.1186/s12879-019-4594-y. doi: 10.1186/s12879-019-4594-y. [9] 袁伟. 2016年四川省手足口重症病例流行特征分析. 预防医学情报杂志,2018,34(7): 932–934. [10] ZOU J J, JIANG G F, XIE X X, et al. Application of a combined model with seasonal autoregressive integrated moving average and support vector regression in forecasting hand-foot-mouth disease incidence in Wuhan, China. Medicine(Baltimore), 2019, 98(6): e14195[2020-05-10]. https://journals.lww.com/md-journal/Fulltext/2019/02080/Application_of_a_combined_model_with_seasonal.16.aspx. doi: 10.1097/MD.0000000000014195. [11] 王斌, 冯慧芬, 黄平, 等. 人工神经网络模型在预测重症手足口病中的应用研究. 现代预防医学,2018,45(11): 1921–1925. [12] 袁秀芳. SVR模型及其用于经济数据预测的研究. 成都: 西华师范大学, 2016. [13] HUANG J, LIAO Q H, BENJAMIN J, et al. Epidemiology of recurrent hand, foot and mouth disease, China, 2008–2015. Emerg Infect Dis,2018,24(3): 432–441. doi: 10.3201/eid2403.171303 [14] 张英杰, 王超, 曹凯, 等. 中国大陆2008−2010年手足口病流行特征聚类分析. 中国公共卫生,2015,31(5): 541–544. doi: 10.11847/zgggws2015-31-05-01 [15] 相然, 樊旭成, 高枫, 等. 2013−2017年乌鲁木齐市手足口病病原学监测结果分析. 现代预防医学,2019,46(7): 1298–1301. [16] SUMI A, TOYADA S, KANOU K, et al. Association between meteorological factors and reported cases of hand, foot, and mouth disease from 2000 to 2015 in Japan. Epidemiol Infect,2017,145(14): 2896–2911. doi: 10.1017/S0950268817001820 [17] ZHANG W, DU Z, ZHNG D, et al. Assessing the impact of humidex on HFMD in Guangdong province and its variability across social-economic status and age groups. Sci Rep, 2016, 6: 18965[2020-05-10]. https://www.nature.com/articles/srep18965. doi: 10.1038/srep18965. [18] YU G, LI Y, CAI J, et al. Short-term effects of meteorological factors and air pollution on childhood hand-foot-mouth disease in Guilin, China. Sci Total Environ,2019,646: 460–470. doi: 10.1016/j.scitotenv.2018.07.329 [19] ZHAO D, WANG L, CHENG J, et al. Impact of weather factors on hand, foot and mouth disease, and its role in short-term incidence trend forecast in Huainan City, Anhui Province. Int J Biometeorol,2017,61(3): 453–461. doi: 10.1007/s00484-016-1225-9 [20] 祝丙华. 基于多气象因素协同作用的我国登革热和手足口病流行特征与预测研究. 北京: 军事科学院, 2018. [21] 朱建明, 李澜, 莫平华, 等. 基于气象因素的上海市金山区手足口病多元线性回归预测模型. 实用预防医学,2016,23(1): 115–117. doi: 10.3969/j.issn.1006-3110.2016.01.036 [22] 余功超, 冯慧芬, 王芳, 等. 手足口病流行的季节性与气候因素的关系研究. 现代预防医学,2020,47(2): 193–199. [23] 甘中学, 喻想想, 许裕栗, 等. 基于周期性ARMA-SVR模型的空调冷热负荷预测. 控制工程,2020,27(2): 380–385. [24] 黄照. 珠三角地区手足口病发病异常探测和预测预警研究. 广州: 广东药科大学, 2019. -
